Affordable, Precise and Portable for Rapid In-Process Inspection.

inspection solutions

Master3DGage™

Axsys work closely with our customers to define needs, identify solutions, implement technology and maintain systems that automate manufacturing. Our open system strategy maximizes CAD and metrology interoperability empowering our experts to help customers choose the best technology for their application and budget. Verisurf hardware is configured with the right functionality for your application and budget.

We invite you to review our products and contact us to see a Verisurf 3D measurement system first hand or to help configure and quote the right system for your application and budget.  With Master3DGage™ you can precisely pinpoint and resolve quality issues in real time, reduce scrap, improve efficiency and boost the productivity of every machine. Simplicity and ease of use are designed right in, so that even those with little or no metrology experience can get up to speed quickly. Controls and interface are easy and straightforward, so users spend less time scrolling through screens and more time making quality parts.

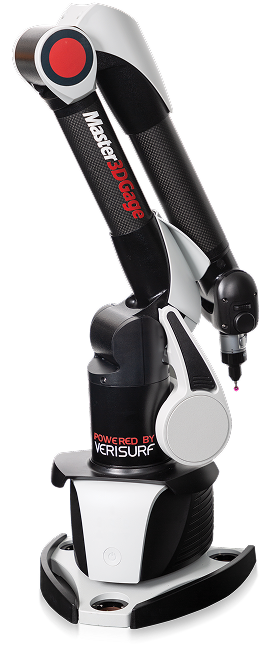

Master3DGage™ is a six-axis articulated arm CMM with absolute encoders and unique counterweight design making it the most balanced and accurate available. With a 1.2m hemispherical measuring volume and quick-mount base the Master3DGage is ideal for fast in-process measurement and inspections anywhere on the shop floor. Lightweight and compact place your Master3DGage™ right on your CNC machine to verify parts quickly, without repositioning.

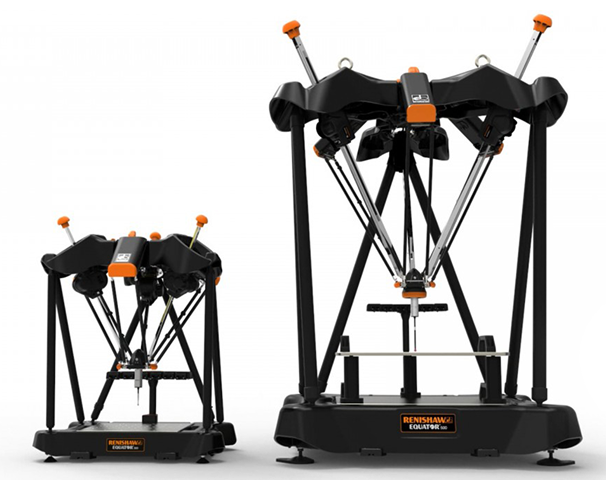

CMM Master™: Automated Shop Floor Inspection SolutionMaster

Automated, affordable and calibrated for high production shop floor inspection.  CMM Master™, based on the Renishaw Equator™ platform, increases shop floor productivity, reduces scrap and replaces multiple single-use fixture gages at a fraction of the cost of traditional CMM systems. Portability, compact footprint, single phase power and no compressed air requirement makes this system ideal for flexible shop floor inspection and automated production cells.

Verisurf increases the accuracy of the Renishaw Equator™ with Cubic Volumetric Mapping. The unique software technology utilizes a 24 parameter calculation to volumetrically error map the 3D measurement volume and creates a compensation table with tri-cubic interpolation that makes the Verisurf error-corrected Equator significantly more accurate. Every CMM Master comes with calibration certificate and because the accuracy is improved through software, all Equator warranties remain intact.  

CMM Master™ can be used as a software-driven gaging comparator by measuring a ‘known to be good master reference part’ then comparing subsequent production parts to the master. This further reduces costs and increases inspection flexibility by replacing hundreds of single use hard gages.

Tool Building

Verisurf is the global leader in tool building software.

Tool Inspection

Conduct periodic inspection of your tooling without error and at the same time, with greater efficiency and process control.

Common Platform

For product data management by interfacing with all types of CAD models and measuring devices in real-time.

Applications

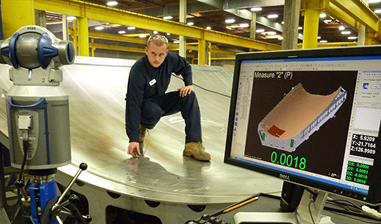

Tool Building

Verisurf is the global leader in tool building software. Our state-of-the-art system complete with the Virtual Gage literally guides you through the tool building process in real-time using simple to understand graphic feedback. Built on a robust CAD/CAM engine, manufacturers can read CAD files on multiple levels for large assemblies, turning on and off details at will. With Verisurf, you seamlessly reduce the tool building process from months to mere weeks.

Periodic Tool Inspection

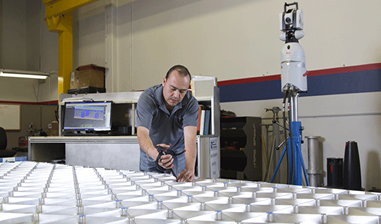

Conduct periodic inspection of your tooling without error and at the same time, with greater efficiency and process control. As more and more companies are required to regularly inspect numerous tools to meet government and independent audit requirements, most find that automating the process creates efficiencies without sacrificing accuracy. Verisurf fulfills these demanding requirements by automatically checking key points while directing the operator through a controlled, repeatable process.

Quality Assurance

Manufacturing operations must verify that processes and machined parts meet specifications and quality standards. Fulfilling these needs with Model-based Definition (MBD), Verisurf’s unparalleled software ensures Quality Assurance during product development and Quality Control of the final manufactured part. Verisurf also provides a full spectrum of documentation and reporting capabilities for enhanced efficiency throughout the entire product lifecycle. With Verisurf, you eliminate the backup in Quality Control and complete inspections in minutes, instead of hours or even days.

Reverse Engineering

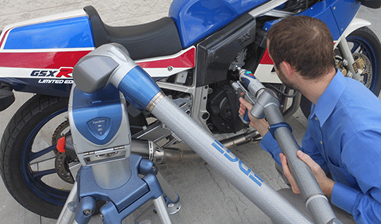

Verisurf Reverse is an advanced, powerful software tool used for processing scan data to produce usable 3D manufacturing models. Bringing state-of-the-art technology to the engineering process, Reverse allows users to precisely measure a physical part or artifact to produce a digital 3D model. Developed on a robust CAD/CAM platform, the premier solution offers advanced point cloud and meshing tools for translating the measured part to CAD geometry.

Automated Inspection

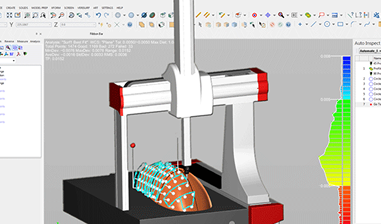

To reduce costs and time required for inspection and enhance process control, Verisurf allows the implementation of automated inspection routines. Users simply create a model-based inspection plan that subsequently prompts inspectors or even non-QA personnel through the entire process. This advanced capability means quality control engineers can develop the foundation plan for entry-level inspectors to run at anytime, leading them through the process step by step. Once inspection is complete, an easy to read report is generated. With Verisurf, manufacturers resourcefully increase productivity while minimizing personnel and training requirements.

Laser Projection

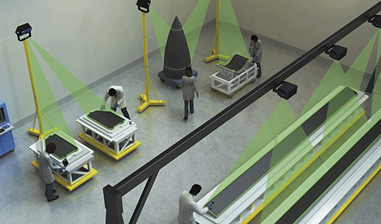

Verisurf Laser Projection offers the fastest and easiest means for creating laser projection programs. It even allows live programming on the projectors, making setup and design changes significantly more efficient. After loading the nominal CAD model from any CAD design program, manufacturers can easily select geometry to quickly create paths for Laser Projectors. With Verisurf Laser Projection, you have an edge on all of the other solutions used in the industry today.

3D Measurement Solutions.

Meeting quality objectives requires confirmation that finished dimensions consistently meet design specs. Successful manufacturers build and maintain their reputation for quality by integrating 3D metrology systems like Verisurf into their overall production processes

The Verisurf System

Verisurf empowers manufacturers with 3D measurement solutions that assure product quality, reduce waste, and improve business profitability. Composed of integrated metrology modules offered in specific combinations, or suites—Verisurf is ideally suited to the most common manufacturing challenges. Verisurf software is modular so you can configure the right functionality for your application and budget.

The Building Blocks of Verisurf Solutions

Verisurf software solutions consist of integrated application modules; each with specialized functionality. As customer needs have evolved, so has Verisurf. Building outward from its foundational CAD module, Verisurf is able to connect interrelated disciplines and processes around a common open platform, including: Automated Quality Inspection and Reporting; Scanning and Reverse Engineering; Tool Building, and Assembly Guidance.

Application Modules

CAD

Built on today’s most powerful, robust CAD system.

Measure

The metrology tool for feature based part inspection.

Automate

Fast, easy CMM programming and operation.

Analysis

Comparing inspection data to the nominal CAD model.

Build

Real-time, model-based inspection and assembly.

Reverse

Powerful, versatile reverse engineering software.

Project

Fast, efficient laser projector programming.

Validate

Validates CAD models to prevent manufacturing errors.

SDK

Programmatically access Verisurf functionality

Universal CMM

Plug-&-play cross communication for leading CMMs

Verisurf Application Suites

Verisurf empowers manufacturers with 3D measurement solutions that assure product quality, reduce waste, and improve business profitability. Composed of integrated metrology modules offered in unique combinations, or suites— Verisurf is ideally suited to the most common manufacturing challenges.

Verisurf Solution Suites are designed to address today’s most common measurement and reporting needs. Pulling from Verisurf Application Modules, the Solution Suites deliver high performance, efficiency, and cost-effective answers for quality verification and increased productivity in manufacturing. All Solution Suites are scalable and additional Application Modules can be added later should the need arise. As with all Verisurf software, Solution Suites are compatible with all new and existing hardware.

Metrology Enterprise

The Metrology Enterprise Suite consolidates all of Verisurf’s capabilities in an integrated, easy-to-learn and easy-to-use experience that gives operators the capacity to complete any conceivable metrology project.

CMM Programming & Inspection

The Verisurf CMM Programming and Inspection Suite includes all of the capabilities you’ll need to build, edit, preview, monitor, and re-use inspection programs on your CNC CMM.

3D Scanning & Inspection

Inspect anything; use any device; probe, scan, or use a tracker to produce actionable results fast! The Verisurf 3D Scanning and Inspection Suite integrates Verisurf’s CAD, MEASURE and ANALYSIS modules and tackles inspection challenges head-on.

Tool Building & Inspection

CMM Programming & Inspection

The Verisurf CMM Programming and Inspection Suite includes all of the capabilities you’ll need to build, edit, preview, monitor, and re-use inspection programs on your CNC CMM.

Guided Assembly & Inspection

The Verisurf Guided Assembly and Inspection Suite includes Verisurf’s CAD, MEASURE, and PROJECT modules. This suite includes everything you’ll need to program laser projectors to accurately project a laser line onto a surface or object using CAD data.

Inspection Suite

The Verisurf Inspection Suite is easy to learn and easy to use with its rapid Align / Inspect / Report workflow. The solution includes Verisurf CAD and MEASURE modules and supports all CMMs.

Verisurf Education Suite

Working alongside educators, industry professionals and some of the best subject matter experts in the field of metrology, Verisurf has developed a comprehensive education program designed to provide students with the skills required for jobs in dimensional metrology.

Advanced Inspection Solutions by Axsys Incorporated

Axsys Incorporated specializes in delivering cutting-edge inspection hardware solutions that enhance quality assurance in manufacturing processes. Our advanced systems, including the Master3DGage™ and CMM Master™, are designed to meet the evolving needs of manufacturers seeking precision and efficiency in their operations.

By integrating state-of-the-art technology with user-friendly interfaces, our products empower businesses to conduct real-time inspections and maintain high standards of quality. This commitment to innovation positions Axsys as a leader in the inspection hardware industry, ensuring that our clients can achieve their production goals without compromise.

Benefits of 3D Measurement Systems

3D measurement systems provide unparalleled accuracy and efficiency in quality control, allowing manufacturers to detect deviations in production early. These systems facilitate the precise measurement of components, ensuring that each part meets the required specifications before moving on to the next stage of manufacturing.

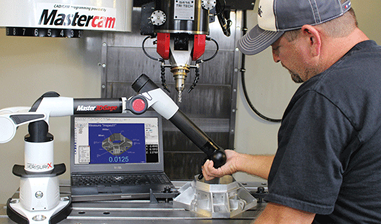

For instance, the Master3DGage™ enables operators to verify parts directly on the CNC machine, significantly reducing the time spent on inspection processes. This capability not only minimizes scrap but also enhances overall productivity, making 3D measurement systems an essential tool in modern manufacturing environments.

Applications of CMM Master™ in Manufacturing

The CMM Master™ is designed for flexible shop floor inspection, making it ideal for a variety of manufacturing applications. Its portability and compact design allow it to be easily integrated into production lines, where it can perform automated inspections and replace multiple single-use fixtures.

Manufacturers can leverage the capabilities of the CMM Master™ to streamline their quality control processes, ultimately reducing costs and improving turnaround times. By utilizing this versatile inspection solution, companies can ensure that their products meet stringent quality standards while maintaining operational efficiency.

Integrating Verisurf Software for Enhanced Quality Control

Verisurf software plays a critical role in enhancing the capabilities of Axsys inspection systems, offering a comprehensive suite of tools for quality assurance and control. With features such as model-based inspection and automated reporting, Verisurf enables manufacturers to conduct thorough inspections with minimal downtime.

By utilizing Verisurf, companies can easily manage their inspection data, facilitating better decision-making and faster responses to quality issues. This integration not only improves the accuracy of inspections but also contributes to a more efficient manufacturing process, reinforcing the importance of software in modern quality assurance practices.
