Solutions for Today's Modeling Challenges.

Moldplus Software: Efficient Mold Design & Manufacturing Tools

AND BEYOND

Moldplus SA offers a suite of powerful time and money saving solutions to help get your designs done faster, manufactured and out the door! Model-makers, mold-makers, pattern-making, aerospaceindustry, and anyone involved in surface or Solid modeling, Moldplus is the solution

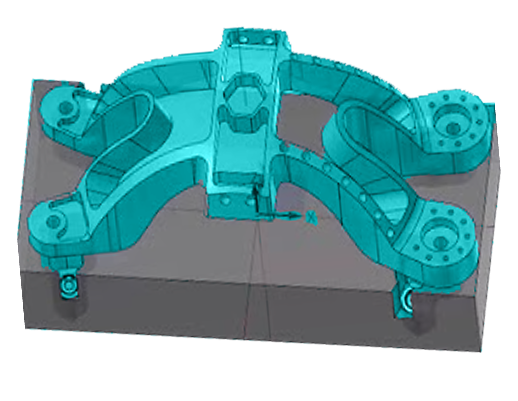

Market Driven

Moldplus SA is continually adding functionality to its line of products in response to the numerous requests they receive from their users. Moldplus Software updates with increased functionality are distributed often at minimal cost to users. New versions are available for customers on the Moldplus SA maintenance program or as product updates from Axsys Incorporated.

Products

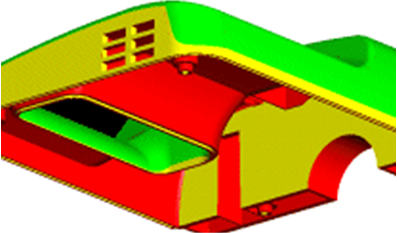

Moldplus Standard

Consists of surface trimming and extension tools, mold design tools such as Draft Angle Analysis, Core and Cavity separation and parting surface creation.

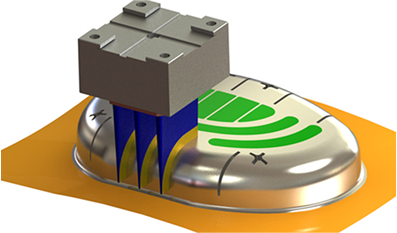

Moldplus Professional

Includes tools for untrimming surfaces, healing/fixing surfaces and tools to make Electrodes and surface extensions for vacuum forming tools. This package includes all of the features available in the Moldplus Standard package.

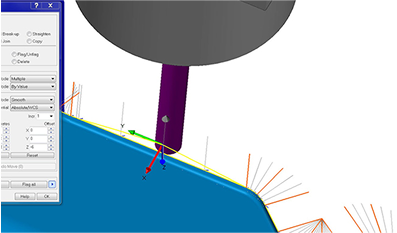

5-Axis Toolkit

Consists of design tools for preparing your geometry for machining. AutoSet Surface Normals, radius analysis, check/drive surface selector, 1-click part extension (draft and tangent) and 5-axis curve and tilt creation/manipulation.

Data Translation Solutions.

Moldplus CAD Translators provides users with the ability to reliably import native CAD geometry, history, dimensional and model definition data. Translators are available with support for CATIA V6/V5/V4 Import, Siemens NX/JT Import, ProE/Creo Import and STEP AP242.

Data Translation Solutions

CATIA v5

CATIA V5 Import with GD&T/MBD data (Supports From R10 to R34 (V5-6R2024)) Read native: .CATPart, .CATProduct,.CGR

CATIA v6

CATIA V6 Import with GD&T/MBD data (Supports From R2010x to R2025x) Read native: .3dxml

CATIA v4

CATIA V6 Import (to 4.2x) Read native:. MODEL, .MOD, .MDL, .EXP, .CAT

ProENGINEER/Creo

From 2000i to Creo 11.0 Read native: .PRT, .ASM, .PRT.*, .ASM.*

Siemens NX

Supports from 15 to NX 2406.7000. Read native: PRT

Siemens JT

Supports From 6.4 to 10.7 Read native: JT

STEP

Supports AP209, AP203 (E1, E2), AP214 (up to E3), AP242 (E1, E2) Read native: STP, STEP

moldplus, molding software, mold pluss, mold software, 3d mold design software, pattern mold and design, moldplus design tools, mold plus, is axcs a good brand

Advanced Mold Design Techniques

Moldplus offers advanced techniques that streamline the mold design process, allowing for the creation of intricate geometries with precision. These techniques include automated surface trimming, draft angle analysis, and core and cavity separation, which are essential for producing high-quality molds.

By utilizing these advanced mold design techniques, users can significantly reduce the time spent on manual adjustments and improve the overall accuracy of their molds. For example, the 5-axis curve manipulation feature enables designers to create complex shapes that would be challenging to achieve through traditional methods, thus enhancing productivity and innovation in mold-making.

Integrating Moldplus with Existing Workflows

Integrating Moldplus software into existing workflows is designed to be seamless, ensuring that users can enhance their mold design processes without disruption. The software's compatibility with various CAD systems allows for easy importation of existing designs and data, facilitating a smooth transition.

This integration not only streamlines the design process but also enhances collaboration among teams. By enabling multiple users to work on the same project with consistent tools and data, Moldplus fosters an environment of efficiency and innovation, ultimately leading to better project outcomes.

Case Studies: Success Stories with Moldplus

Many companies across various industries have successfully implemented Moldplus software to improve their mold design and manufacturing processes. These case studies highlight how Moldplus has helped organizations reduce production times and costs while increasing the quality of their products.

For instance, a leading aerospace manufacturer reported a 30% decrease in mold design time after adopting Moldplus, thanks to its automated features and user-friendly interface. Such success stories serve as a testament to the software's effectiveness and its potential to transform mold-making operations.

Future Developments and Updates in Moldplus

Moldplus is committed to continuous improvement and innovation, regularly updating its software based on user feedback and industry advancements. These future developments aim to enhance functionality and introduce new features that cater to the evolving needs of mold-makers.

Upcoming updates include enhanced data translation capabilities and additional tools for mold optimization. By staying ahead of industry trends and incorporating user requests, Moldplus ensures that its software remains a leading solution in the mold design and manufacturing sector.
