artistic relief design and cutting with Mastercam Art

. The software lets you bring your 2D sketches, clip art, photos, and CAD files to life by crafting them on screen and cutting them with easy, specialized toolpaths. Creating basic 2D art to sophisticated 3D sculpture is quick and easy with Mastercam Art. It is the ultimate tool for adding that extra sculpted flair to your work.

Create your own beautifully sculpted designs with Mastercam Art.

Combining an Artist’s Eye with
a Computer’s Ease

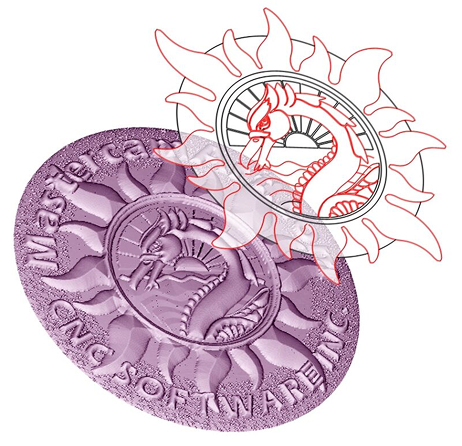

Organic Design

Combining an Artist’s Eye With a Computer’s Ease Mastercam Art puts

sculptured 3D artwork

within everyone’s reach – without the need to be a surface modeling expert. You quickly shape and change your model on-screen until it looks just the way you want it. Art has great visualization tools and instant editing features, including dimensional and non-dimensional input options. Save your knowledge It’s common to re-use your creation settings on various jobs. Mastercam Art lets you save off your favorite combinations, ready to be used again in an instant

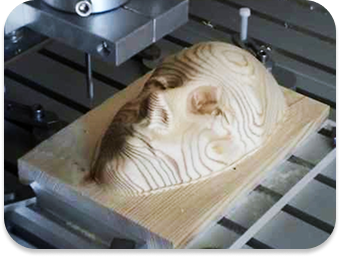

Toolpath

Once you’ve modeled your project, Mastercam Art gives you a wide variety of cutting techniques to ensure the part comes off the machine exactly how you imagined it. Accuracy and Speed Mastercam Art’s toolpaths are created specifically for accurately machining artistic surfaces. Built with an eye toward speed, these toolpaths give you machine-ready results – usually in seconds. Pick the Perfect Technique Mastercam gives you a powerful set of techniques and strategies to fit every project.

The Mastercam Art Process

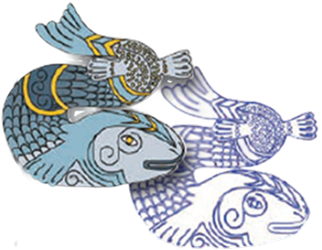

STEP 1

Import Source File.

Mastercam Art converts clip art, CAD files, scanned sketches, or photos to flat, machinable geometry, giving you a basic palette from which to craft your finished model.

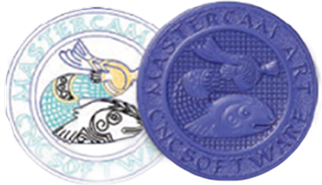

STEP 2

Build A 3D Model.

Quickly create a full 3d sculpture and watch Mastercam Art “puff up” the artwork. Easily modify the model to make sure it is precisely what you want. Choose various application styles for each shape and regenerate the model to achieve your desired results.

STEP 3

Create A Toolpath and Machine It On Screen.

Fast, reliable, toolpaths are easily modified, letting you quickly sample a variety of cutting techniques for the perfect result. Watch as your part is cut with Mastercam’s toolpath verification. Inspect the piece for surface finish and make sure it is exactly what you want, before it ever goes on the machine.

STEP 4

Output G-Code and Cut It On Your Machine.

Quickly create G-Code for your machine using Mastercam’s extensive post processor library. The toolpaths Produce machine-ready results, and these artistic components can always be machined into other parts programmed in Mastercam.

Key Features of Mastercam Art

Mastercam Art offers a range of features designed to simplify the artistic design process. Users can easily convert 2D sketches and images into intricate 3D models, allowing for seamless creativity and innovation. The software includes tools for adding, subtracting, and blending shapes, making it accessible for both beginners and seasoned artists.

Additionally, Mastercam Art supports various file types, including JPG, TIFF, and CAD formats, enabling users to work with a wide array of graphic inputs. This versatility ensures that artists can utilize their existing designs and enhance them with advanced 3D capabilities, ultimately streamlining their workflow.

Toolpath Techniques for Precision Cutting

The toolpath capabilities in Mastercam Art are engineered for precision and efficiency, providing users with multiple cutting techniques to achieve their desired results. Once a design is modeled, the software allows for quick modifications to the toolpaths, ensuring that the final output meets the artist's vision.

This feature not only saves time but also enhances the accuracy of the machining process. Users can experiment with different cutting strategies, from simple contours to complex designs, ensuring that every piece is crafted to perfection, ready for production.

Applications of Mastercam Art in Various Industries

Mastercam Art is utilized across various industries, including manufacturing, woodworking, and sculpture. Its ability to transform artistic visions into tangible products makes it a valuable tool for professionals seeking to produce high-quality designs efficiently.

For instance, woodworkers can create intricate carvings and decorative elements, while manufacturers can design custom parts that require artistic flair. The software's flexibility accommodates a broad spectrum of applications, making it an essential resource for anyone involved in artistic production.

Customer Support and Resources

Axsys Incorporated is committed to providing exceptional customer support for Mastercam Art users. The company offers a variety of resources, including tutorials, user guides, and direct support channels, ensuring that users can maximize their experience with the software.

In addition to technical support, Axsys hosts webinars and workshops that cover best practices and advanced techniques. This commitment to education helps users stay informed about updates and new features, empowering them to leverage Mastercam Art to its fullest potential.
